VAG

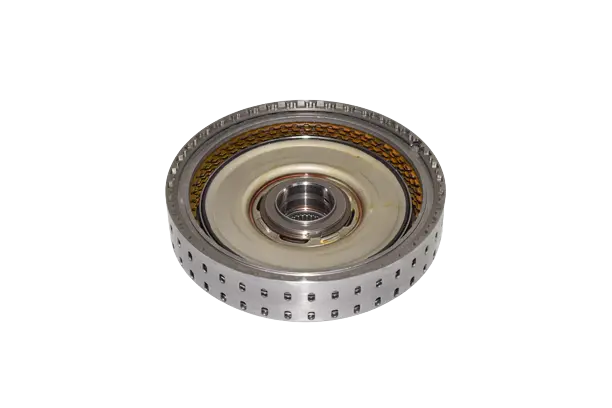

TF-60SN 09M 09J 09Q | K1 Clutch Drum Complete | 6 Plate | Removed From New Transmission
¥33,300 ex VAT
¥33,300 ex VAT
Couldn't load pickup availability
Total height - 61 mm.
The number of splines on the shaft seat is 28 pcs.
The height from the piston body to the seat of the retaining ring is 23.50 mm.
Clutch Pack K1 CLUTCH (C1 1-2-3-4)
The total thickness of the clutch pack K1 is 22.05 mm.
Support disk (steel):-
Thickness - 3.95 mm.
The inner diameter is 130.75 mm.
The number of teeth is 40 pcs.
The number of discs in the set is 1 pcs.
Friction disk:-
Thickness - 1.45 mm.
Outside diameter - 147.05 mm.
The number of teeth is 56 pcs.
The number of discs in the set is 6 pcs.
Steel disc:-
Thickness - 1.80 mm.
Outside diameter - 130.80 mm.
The number of teeth is 40 pcs.
The number of discs in the set is 5 pcs.
2003 - On
Audi
Seat
Skoda
VW
+ more
FREE ECONOMY SHIPPING WITHIN THE UK.
For all other countries, please contact Customer Service for competitive live rates.
Live Chat is available Mon - Fri 0815 - 1715 BST.
Call Customer Service on
+44 01323 848886
If you need to return an item, please complete our online Returns Request form.
Parts supplied correctly may be subject to a 15% handling charge.
All returns must have prior approval from Sussex Autos before goods are sent back.
Email Information Request to Sussex Autos Customer Service
Please include product details where applicable.
AW TF-60SN 09M 09J 09Q | K1 Clutch Drum Assembly | 6 Plate | Removed from New Transmission
The K1 Clutch Drum Assembly for AW TF-60SN, 09M, 09J, 09Q, and 09K transmissions is an essential component responsible for activating the 1-2-3-4 gears. This assembly features 6 friction discs and is designed to fit automatic transmissions from 2003 and onwards. Prolonged use of a transmission with metal shavings in the pan can lead to the wear and eventual failure of the K1 clutch pack. This assembly, removed from a new transmission, is a perfect replacement to ensure optimal performance and extend the life of your transmission.
