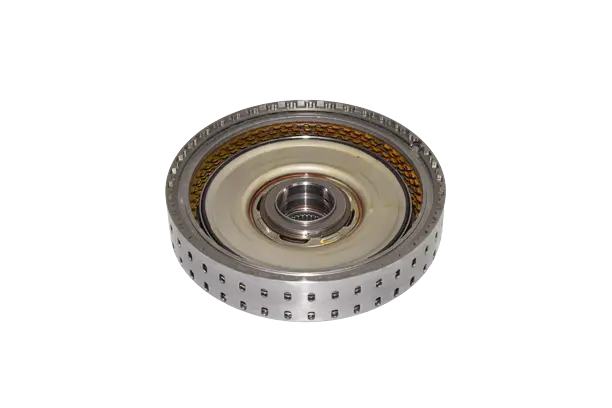

K1 drum assembly automatic transmission AWTF-60SN/09M/09J/09Q/09K (6 friction discs) 03-up

The K1 drum is responsible for activating 1-2-3-4.. Prolonged operation of the automatic transmission with the shaving in the pan subsequently leads to the combustion of friction clutches and steel plates of pack K1, and then to the replacement of entire drum of the clutch K1. The problem is that the piston is rotated in the drum and erases rubber piston rings.

Provide your VIN at checkout and we'll verify this part fits your specific vehicle before shipping.
Specs
Dimensions: Total height - 61 mm.

The number of splines on the shaft seat is 28 pcs.
The height from the piston body to the seat of the retaining ring is 23.50 mm.
Clutch Pack K1 CLUTCH (C1 1-2-3-4)

The total thickness of the clutch pack K1 is 22.05 mm.
Support disk (steel):
Thickness - 3.95 mm.
The inner diameter is 130.75 mm.
The number of teeth is 40 pcs.
The number of discs in the set is 1 pcs.
Friction disk:

Thickness - 1.45 mm.
Outside diameter - 147.05 mm.
The number of teeth is 56 pcs.
The number of discs in the set is 6 pcs.
Steel disc:

Thickness - 1.80 mm.
Outside diameter - 130.80 mm.
The number of teeth is 40 pcs.
The number of discs in the set is 5 pcs.
Request Information Email an Information Request
For the following Vehicles:
2003 - On
Audi
Seat
Skoda
VW
+ more
FREE SHIPPING WITHIN THE UK. For all other countries, please call to check competitive live rates. +44 01323 848886
Parts supplied correctly may be subject to a 15% handling charge. This form MUST be returned with all goods. All returns must have prior approval of Sussex Auto Parts Ltd. Failure to obtain this will result in the refusal of refund. --> Returns Form

VAG

AW TF-60SN/09M/09J/09Q K1 Clutch Drum Complete(6 Plate) Removed From New Transmission

VW09M-29-06

Regular price

$414.00 inc VAT

$345.00 ex VAT

Regular price $345.00 Sale price $414.00
Sale Sold out
Shipping calculated at checkout.
